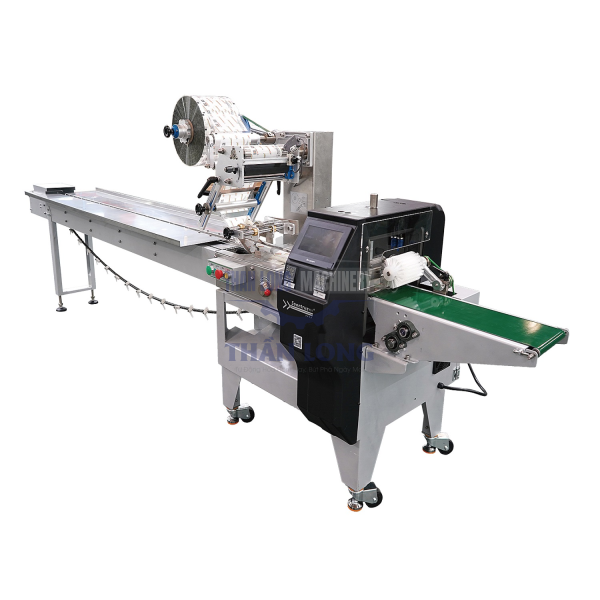

Máy đóng gói nằm, động cơ sevor SZ-100

Dịch vụ hỗ trợ

Thông tin sản phẩm

Application:

This machine is applied for mooncakes,bread, biscuits,seaweeds,candies, medicine, daily goods, hardwares, and products with box or tray with regular shape.

Main characteristics & Structure features

1.Compact machine structure with smaller footprint area.

2.Carbon steel or stainless steel machine frame with nice appearance.

3.Optimized component design realizing fast and stable packing speed.

4.Servo control system with higher accuracy and flexibility mechanical motion.

5.Different optional configurations and functions meeting different specific requirements.

6.High accuracy of color mark tracking function.

7.Easy to use HMI with memory function.

Thông số kỹ thuật

Technical parameters:

Model

SZ-100(single cutter

SZ-100(Double cutter

SZ-100(Three cutter

Packing size Length

120-300mm

60-200mm

45-120mm

Width

35-80mm

35-80mm

35-70mm

Height

5-35mm

5-35mm

5-30mm

Packing speed

30-150packs/min

30-250packs/min

30-450packs/min

Packing film width

90-220mm

90-220mm

90-220mm

Packing film types

ordinary laminated film ( PPPVCPEPSEVAPETPVDC+PVC)

Power type

220V, 50Hz

220V, 50Hz

220V, 50Hz

Total power rate

3.1kw

3.8kw

4.5kw

Machine weight

360kg

360kg

360kg

Machine size

4000*930*1360mm
