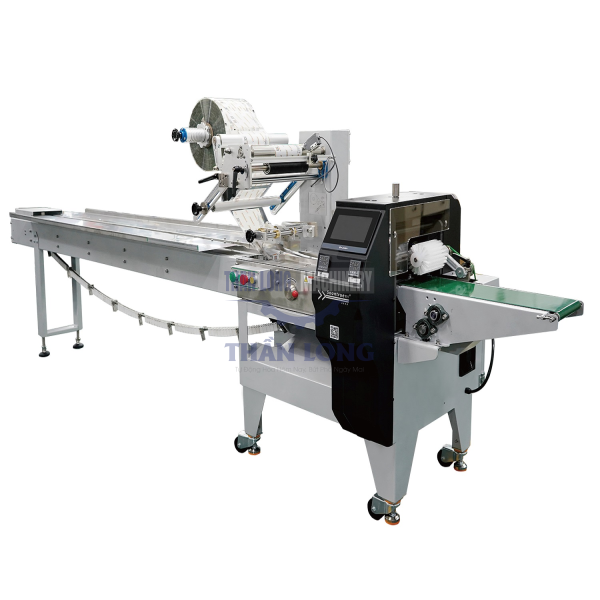

Máy đóng gói nằm, động cơ servo SZ-180

Dịch vụ hỗ trợ

Thông tin sản phẩm

Application:

This machine is applied for mooncakes,bread, biscuits,seaweeds,candies, medicine, daily goods, hardwares, and products with box or tray with regular shape.

Main characteristics & Structure features

1.Compact machine structure with smaller footprint area.

2.Carbon steel or stainless steel machine frame with nice appearance.

3.Optimized component design realizing fast and stable packing speed.

4.Servo control system with higher accuracy and flexibility mechanical motion.

5.Different optional configurations and functions meeting different specific requirements.

6.High accuracy of color mark tracking function.

7.Easy to use HMI with memory function.

Thông số kỹ thuật

Model

SZ-180(single cutter

SZ-180(Double cutter

SZ-180(Three cutter

Packing size Length

60-500mm

60-350mm

45-100mm

Width

35-160mm

35-160mm

35-60mm

Height

5-60mm

5-60mm

5-30mm

Packing speed

30-150packs/min

30-300packs/min

30-500packs/min

Packing film width

90-400mm

90-400mm

90-400mm

Packing film types

ordinary laminated film PP,PVC,PE,PS,EVA,PET,PVDC+PVC

Power type

220V, 50Hz

220V, 50Hz

220V, 50Hz

Total power rate

5kw

6.5kw

5.8kw

Machine weight

400kg

400kg

400kg

Machine size

4000*930*1360mm
